Infer deletions in batched ELT staging data

2021-02-06dbtdtspecsnowflake

This post concentrates on the enhancing ELT staging data for being able to infer entries which are missing from one batch export to the next one.

Suppose that a shop is exporting daily towards the data warehouse environment the whole list of its active products in csv files:

  • products-2021-01-01.csv
  • products-2021-01-02.csv
  • products-2021-01-03.csv
  • products-2021-01-04.csv
  • products-2021-01-05.csv

Obviously from a day to the next there may be new products which get activated or existing products which get deactivated.

Nowadays there are source systems which simply do a snapshot of the existing products without providing any information about the deleted products since the previous export.

This missing information requires special effort on the data warehouse side in order to accurately infer the date range(s) for which the products in the shop were active.

If for a certain period of time, there is no product data ingested in the data warehouse, it may happen that the product data corresponding to several days in a row may need to be staged in the data warehouse.

This might be also the case when a bug is found in the historization of the product data which may involve a full reload of all the product staging data.

Historization of the product availability

In order to fully historize the product availability there needs to be made the following data sets need to be combined together:

product staging data
UNION
inferred deletions within the product staging data (what this blog post concentrates on)
UNION
inferred deletions from the active products within the already historized data
that do not appear in the last exported staging day

The formula briefly described above, provides the necessary input data for being able to historize in detail the product availability date ranges.

On the basis of the insertions & deletions for the products within the data warehouse environment the availability date ranges for each of the products from the shop can be accurately calculated.

Infer deletions in the staging data

This article doesn’t go in the details on how to historize the product availability within the data warehouse environment, but rather concentrates on how to enhance the staging data so to identify deleted entries within the staging data when exported data for the products corresponding to multiple days are imported at the same time.

If everything goes well and every day the products are staged successfully, the logic presented below will never be used.

On the other hand, when there are multiple days processed at the same time, it can get difficult to find out exactly which are the availability date ranges for a product which gets activated and deactivated several times during the processed days.

Let’s suppose that some of the products are very short-lived (e.g. : they are active only for a day on the shop).

e.g. : supposing that product data for each of the dates from the interval 2021-01-01 - 2021-01-05 is being staged at the same time. The product milk is available on 2021-01-01 , but not available anymore on 2021-01-02, then again available on 2021-01-04 and not available anymore again starting from 2021-01-05.

In the scenario described above, for the product milk, there should be created artificially deletion entries for the dates:

  • 2021-01-02
  • 2021-01-05

On the example of the milk product suggested above, the availability intervals in the staging data would be:

  • 2021-01-01 - 2021-01-02
  • 2021-01-04 - 2021-01-05

For the sake of an easier reading of what this (rather exotic) problem is trying to solve, here will be presented visually, step by step how the deletions of the products from the staged data are being inferred.

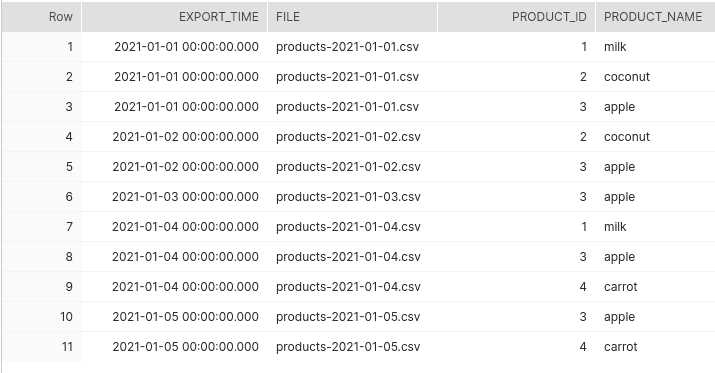

If the raw_products staging table has the following representation:

raw products

NOTE that here is made the supposition that the exported products for a certain day share the same export_time timestamp. The algorithm presented here works only when this supposition is met.

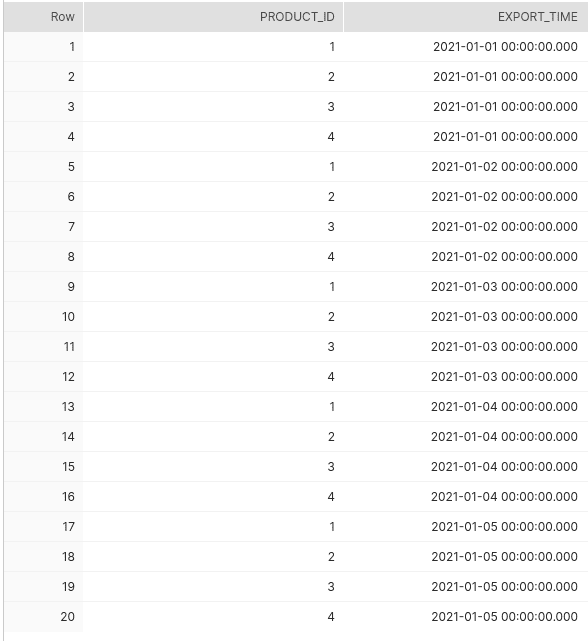

The starting point in the journey of inferring deletions within the staging data is to build a cartesian product between the staging dates and the staged product ids:

SELECT product_id,
       export_time
FROM (
        (SELECT DISTINCT product_id
        FROM playground.dbt_shop.raw_products)
        CROSS JOIN
        (SELECT DISTINCT export_time
        FROM playground.dbt_shop.raw_products) AS staged_date
);

cartesian product

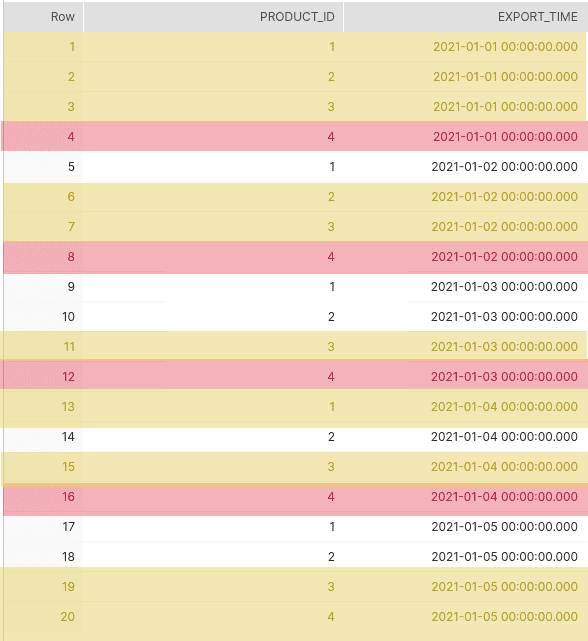

From the cartesian product the following <product id, export_time> entries are chopped off:

  • the ones that happen before the first appearance of a staged entry for a product (marked in red)
  • the ones that are found within the staging entries (marked in yellow)
SELECT product_id,
       export_time
FROM (
          SELECT product_id,
                 export_time
          FROM (
                  (SELECT DISTINCT product_id
                  FROM playground.dbt_shop.raw_products)
                  CROSS JOIN
                  (SELECT DISTINCT export_time
                  FROM playground.dbt_shop.raw_products) AS staged_date
          )
) staged_product_date
WHERE staged_product_date.export_time > (
                                             SELECT MIN(export_time)
                                             FROM playground.dbt_shop.raw_products
                                             WHERE product_id = staged_product_date.product_id
                                         )
  AND staged_product_date.export_time
        NOT IN (
                    SELECT DISTINCT export_time
                    FROM playground.dbt_shop.raw_products
                    WHERE product_id = staged_product_date.product_id
               );

filtered cartesian product

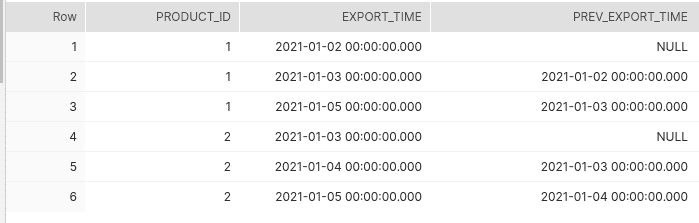

The result of this filtering is represented by all the <product, export_time> entries that are not found within the staging entries:

missing staged products

Now some of the resulting entries are not necessary. If a product is deleted after the first staging day and does not occur anymore subsequently, the entry with the minimum export_time is enough information.

What might happen though is that a product is deleted on one day, and appears again on a later day and is subsequently deleted again later. Between the two deletion dates we’ll have obviously a gap greater than one export day (because the product is in between at least one day active).

In order to cope with such a situation, the LAG window function is being used in order to identify greater gaps between the deletions :

SELECT product_id,
       export_time
FROM (
        SELECT product_id,
               export_time,
               LAG(export_time) OVER (PARTITION BY product_id ORDER BY export_time) prev_export_time
        FROM (
                  SELECT product_id,
                         export_time
                  FROM (
                          (SELECT DISTINCT product_id
                          FROM playground.dbt_shop.raw_products)
                          CROSS JOIN
                          (SELECT DISTINCT export_time
                          FROM playground.dbt_shop.raw_products) AS staged_date
                  )
        ) staged_product_date

        WHERE staged_product_date.export_time > (
                                                     SELECT MIN(export_time)
                                                     FROM playground.dbt_shop.raw_products
                                                     WHERE product_id = staged_product_date.product_id
                                                 )
          AND staged_product_date.export_time
                NOT IN (
                            SELECT DISTINCT export_time
                            FROM playground.dbt_shop.raw_products
                            WHERE product_id = staged_product_date.product_id
                       )
) AS missing_staged_product
WHERE (
        (missing_staged_product.prev_export_time IS NULL)
        OR missing_staged_product.export_time != (
                                                        SELECT MIN(export_time)
                                                        FROM playground.dbt_shop.raw_products
                                                        WHERE export_time > missing_staged_product.prev_export_time
                                                  )
);

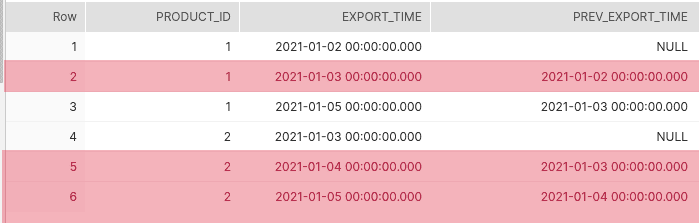

The filtering can be observed (marked in red) in the following image:

filtered missing staged products

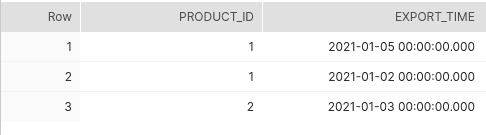

The operation applied previously corresponds now to the inferred batched product deletions:

inferred product deletions

Simplified solution description

Instead of filtering out from the cartesian product of product_id and export_time to infer the deleted products, there could be used a much simpler solution.

It is assumed again that the raw_products staging table has the following representation:

raw products

The result of the query

SELECT
      export_time,
      LEAD(export_time) OVER
          (PARTITION BY product_id ORDER BY export_time)                   AS next_product_export_time,
      (
          SELECT MIN(export_time)
          FROM playground.dbt_shop.raw_products
          WHERE export_time > src.export_time
      )                                                                     AS next_export_time,
      product_id
FROM playground.dbt_shop.raw_products AS src;

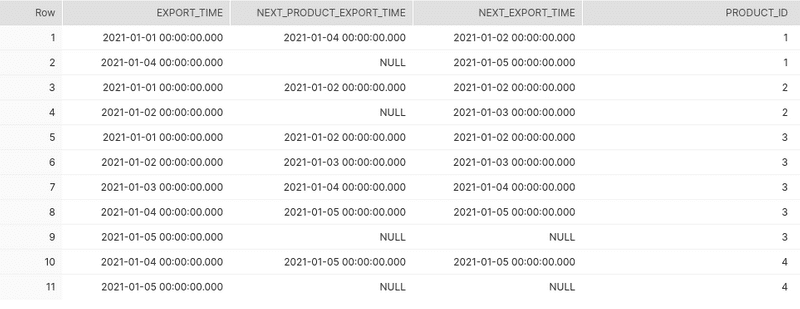

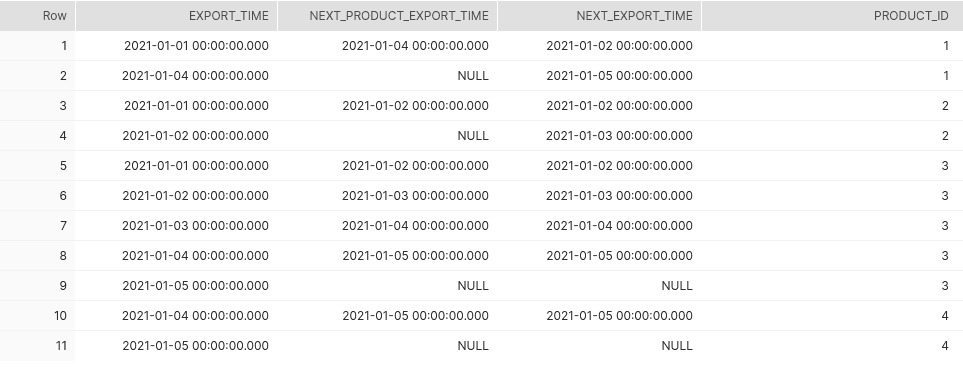

can be used to see when the next occurrences of product exports happen in the staging data:

next product export times

There can be now easily be seen that the next_product_export_time for some of the entries is greater that the next_export_time or that the next_product_export_time in some cases is simply NULL, otherwise said, is missing.

By applying the query

SELECT
    next_export_time               AS export_time,
    product_id,
    (
        next_export_time IS NOT NULL
        AND (next_product_export_time IS NULL OR next_product_export_time > next_export_time)
    )                              AS _deleted
FROM (
        SELECT
            export_time,
            LEAD(export_time) OVER
                (PARTITION BY product_id ORDER BY export_time)                   AS next_product_export_time,
            (
                SELECT MIN(export_time)
                FROM  playground.dbt_shop.raw_products
                WHERE export_time > src.export_time
            )                                                                     AS next_export_time,
            product_id
            FROM  playground.dbt_shop.raw_products AS src
)
WHERE _deleted

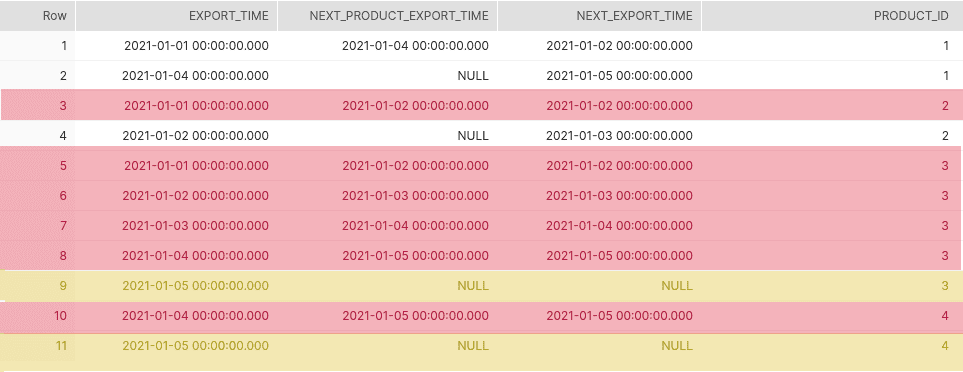

the valid entries:

  • the next_product_export_time is corresponding to the next_export_time (marked in red)
  • the next_export_time is NULL (marked in yellow) meaning that these are the product exports done on the last staging day

are being filtered out:

filtered next product export times

and the result is inferred from the product_id and next_export_time fields:

inferred product deletions

This second solution is definitely easier to grasp and also probably more efficient.

Demo

The concepts described in this blog post can be tried out in the project dbt_infer_deletions_in_batched_staging_data that is accompanying this blog post.

The project includes a data build tool model that can be used to infer deletions within the staging ELT data. The nice thing about this SQL demo is that it contains also automatic test specifications (based on dtspec) in order to verify the accuracy of the implementation against Snowflake database.

Feedback

This blog post serves as a proof of concept for finding deletions within staging data loaded in batched fashion. Eventual improvements to the dbt_infer_deletions_in_batched_staging_data project code or ideas regarding alternative ways to solve this problem are very much welcome.
