Infer deletions in parent-child ELT staging data
This post concentrates on the enhancing ELT staging data for being able to infer entries which
are missing from parent-child JSON staging data.
Suppose that a video platform where the users can make channel subscriptions has a data pipeline to its Data Warehouse system for exporting in case of changes the data about its users in near real-time.
Let us suppose for the sake of simplicity that the data exported towards the data warehouse follows this format:
user
- id: NUMBER
- username: VARCHAR
- created_at: DATETIME
- exported_at: DATETIME
subscriptions
- id: NUMBER
- name: VARCHAR
- subscribed_at: DATETIMEBetween the user and the subscriptions there is a 1:N relationship.
Obviously such a design is far from ideal in case of dealing with a real-world mainstream video platform where a user can have hundreds or even thousands of subscriptions, but due to the fact that video platform concepts are so spread, this is a nice fit for better explaining the problem tackled in this blog post.
In the time between two exports of the user subscription changes of a specific user data, there can be that new subscriptions get added and some of the subscriptions can also be removed (when the user unsubscribes from a channel).
e.g. : Let’s suppose that in the user subscriptions staging data there are found for the user johndoe two entries:
{
"id": 1,
"username": "johndoe",
"created_at": 1609455600000,
"exported_at": 1613379600000,
"subscriptions": [
{
"id": 1000,
"name": "5-Minute Crafts",
"subscribed_at": 1612170000000
},
{
"id": 2000,
"name": "euronews",
"subscribed_at": 1612256400000
},
{
"id": 3000,
"name": "Treehouse",
"subscribed_at": 1612342800000
}
]
}and
{
"id": 1,
"username": "johndoe",
"created_at": 1609455600000,
"exported_at": 1613383200000,
"subscriptions": [
{
"id": 2000,
"name": "euronews",
"subscribed_at": 1612256400000
},
{
"id": 3000,
"name": "Treehouse",
"subscribed_at": 1612342800000
},
{
"id": 4000,
"name": "DevTips",
"subscribed_at": 1613381400000
}
]
}Between 2021-02-15 09:00:00 and 2021-02-15 10:00:00 the user johndoe made a new subscription to the channel
DevTips and unsubscribed from the channel 5-Minute Crafts.
This proof of concept project offers a solution on how to infer deletions of child entities within complex objects from the staging data.
In the scenario described above, an artificially created deletion entry should be created in order to point out approximately when the channel 5-Minute Crafts has been unsubscribed by the user johndoe.
On the basis of the insertions & deletions for the user subscriptions a data engineer can accurately find out across time the subscriptions that the users have made and how long they did last.
Historization of the user subscriptions
The basis for historization logic for the user subscriptions would be summarized by the union of the following data sets:
user subscriptions staging data
UNION
inferred deletions within the user subscriptions staging data (what this project concentrates on)
UNION
inferred deletions from the active user subscriptions within the already historized data
that do not appear in the last exported user subscription dataOn the example of the johndoe user suggested above, the subscription availability intervals
after processing the staging data at 2021-02-15 10:00:00 would be:
| Channel name | Subscribed at | Unsubscribed at |
|---|---|---|
| 5-Minute Crafts | 2021-02-01 09:00:00 | 2021-02-15 10:00:00 |
| euronews | 2021-02-02 09:00:00 | |
| Treehouse | 2021-02-03 09:00:00 | |
| DevTips | 2021-02-15 09:30:00 |
Infer deletions in the staging data
Let us assume that the raw staging data looks exactly as in the hypothetical example presented previously for the user johndoe:
select *
from playground.dbt_video_platform.raw_user_subscription;
One possible solution for the problem described in the introduction of this project is presented in the code below:
WITH src_user_subscriptions AS (
SELECT load_id,
exported_at,
LEAD(load_id) OVER (PARTITION BY user_id ORDER BY exported_at, load_id) AS next_load_id,
LEAD(exported_at) OVER (PARTITION BY user_id ORDER BY exported_at, load_id) AS next_exported_at,
user_id,
subscriptions,
ARRAY_SIZE(subscriptions) AS subscriptions_size
FROM (
SELECT id AS load_id,
record:"id"::NUMBER AS user_id,
TO_TIMESTAMP(record:"exported_at"::NUMBER,3) AS exported_at,
record:"subscriptions"::VARIANT AS subscriptions
FROM playground.dbt_video_platform.raw_user_subscription
)
), user_subscription AS (
SELECT src.load_id,
src.exported_at,
src.next_load_id,
src.next_exported_at,
src.user_id,
subscription.value:"id"::NUMBER AS subscription_id,
subscription.index AS subscription_index,
subscription.value:"name"::VARCHAR AS subscription_name,
TO_TIMESTAMP(subscription.value:"subscribed_at"::NUMBER,3) AS subscription_subscribed_at,
src.subscriptions_size
FROM src_user_subscriptions src
LEFT OUTER JOIN TABLE(FLATTEN(input => src.subscriptions)) subscription ON 1=1
WHERE subscriptions_size > 0
)
SELECT load_id,
exported_at,
user_id,
subscription_id,
subscription_index,
subscription_name,
subscription_subscribed_at,
subscriptions_size,
FALSE AS _deleted
FROM user_subscription
WHERE subscriptions_size> 0
UNION ALL
-- create artificially deleted entries for the subscriptions which don't exist in
-- the next staging occurrence of the user's subscriptions
SELECT next_load_id AS load_id,
next_exported_at AS exported_at,
user_id,
subscription_id,
NULL AS subscription_index,
NULL AS subscription_name,
NULL AS subscription_subscribed_at,
NULL AS subscriptions_size,
TRUE AS _deleted
FROM user_subscription AS current_user_subscription
WHERE next_load_id IS NOT NULL
AND NOT EXISTS (
SELECT 1 FROM user_subscription AS next_user_subscription
WHERE current_user_subscription.next_load_id = next_user_subscription.load_id
AND current_user_subscription.subscription_id = next_user_subscription.subscription_id
)Summarized, the SQL query above takes the complex JSON user entities from the raw staging table and flatten them to user subscriptions.
Subsequently each of the user subscription will get attached load_id and exported_at information from the next user subscription staging
entry per user_id.
Inferring the deletions is now simple because there needs only to be checked whether a user subscription does not have a corresponding subscription in the next staging occurence for the user.

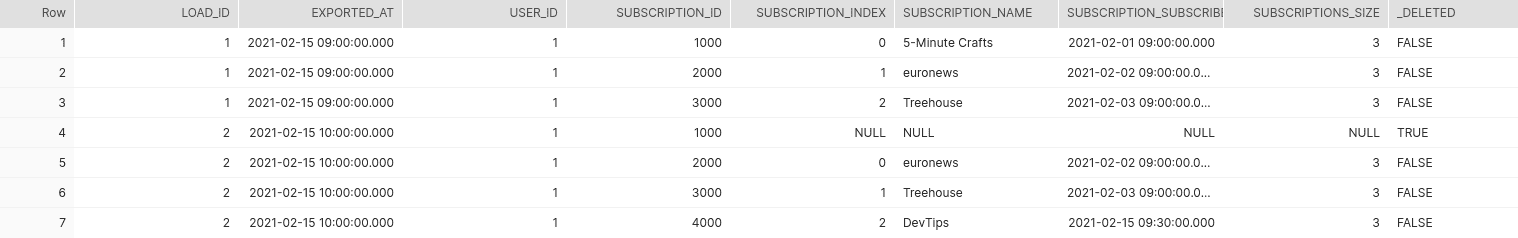

The outcome of this transformation can be seen below:
select *
from playground.dbt_video_platform.stg_user_subscription
order by load_id, subscription_id;

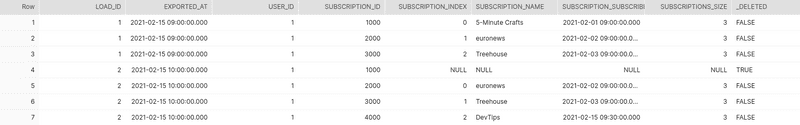

In the image above can be noticed that the subscription of the user johndoe with the ID 1000
identifying the 5-Minute Crafts channel that was present for the user in the staged entry
with the ID 1 is being marked as deleted due to the fact that it does not occur anymore
in the subsequent staging entry with the ID 2.
Demo
The concepts described in this blog post can be tried out in the project dbt_infer_deletions_in_parent_child_staging_data that is accompanying this blog post.
The project includes a data build tool model that can be used to infer deletions within the parent-child JSON ELT data. The nice thing about this SQL demo is that it contains also automatic test specifications (based on dtspec) in order to verify the accuracy of the implementation against Snowflake database.
Feedback
This blog post serves as a proof of concept for finding deletions within parent-child JSON staging data. Eventual improvements to the dbt_infer_deletions_in_parent_child_staging_data project code or ideas regarding alternative ways to solve this problem are very much welcome.
